TurboPierce Portable UHP Piercing System

"When you can't get to where the fire is"

A brand-new apparatus accessory for UHP firefighting

Vehicle fires, double roofs, overhaul, venting, transitional attack

No electronics, motor, skid or PTO. It’s as simple as 1-2-3

Delivered Complete, Ready to Operate

  • Manufactured in Chetek, WI USA
  • 5-year Warranty
  • Free Shipping
  • Standard 1.5 to 2.5 Inlet Fitting
  • TurboDrive powered (more info)
Printable Specifications Schedule Demonstration

TurboPierce is a piercing tool for ultra-high-pressure (UHP) firefighting. The system consists of two primary components: a gun and a 39-pound pressure amplifier. The pressure amplifier is powered by fire engine handline flow. A standard 1.5 to 2.5 inch inlet hose fitting, installed on the low-pressure side of the amplifier, receives the handline. Hose flow is routed through a sculpted bifurcated nozzle that spins a turbine, which is directly coupled to a high-pressure pump. A quick-connect coupling attaches the gun to the amplifier’s high-pressure outlet line. The overall design eliminates the need for a heavy pump motor, skid, electronics, or extra vehicle. The gun can also be used independently of the pressure amplifier, if the department elects to plug into an existing UHP rig.

  • Description

    A lightweight piercing system for UHP firefighting consisting of a water-turbine- driven pressure amplifier (weighing less than 40-pounds and having no greater dimension than 16.5 inches) and a handheld gun.   The system will not use any electrical or wireless components.

    See it Action
    Description
  • Gun

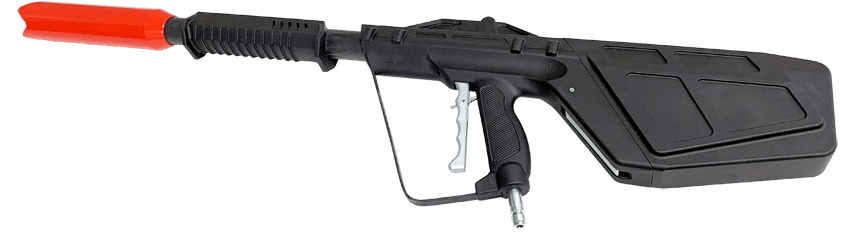

    The piercing gun will utilize suction for abrasive garnet mixing.  Mixing will take place at the end of the gun barrel and not require abrasive to be “pushed”, as a high-speed wear element, through any hose or extremity external to the gun.  The abrasive material will be housed in a quick-change magazine.  The magazine will be an integral component of the gun shoulder-stock.

    Demos & Deliveries
    Gun
  • TurboDrive

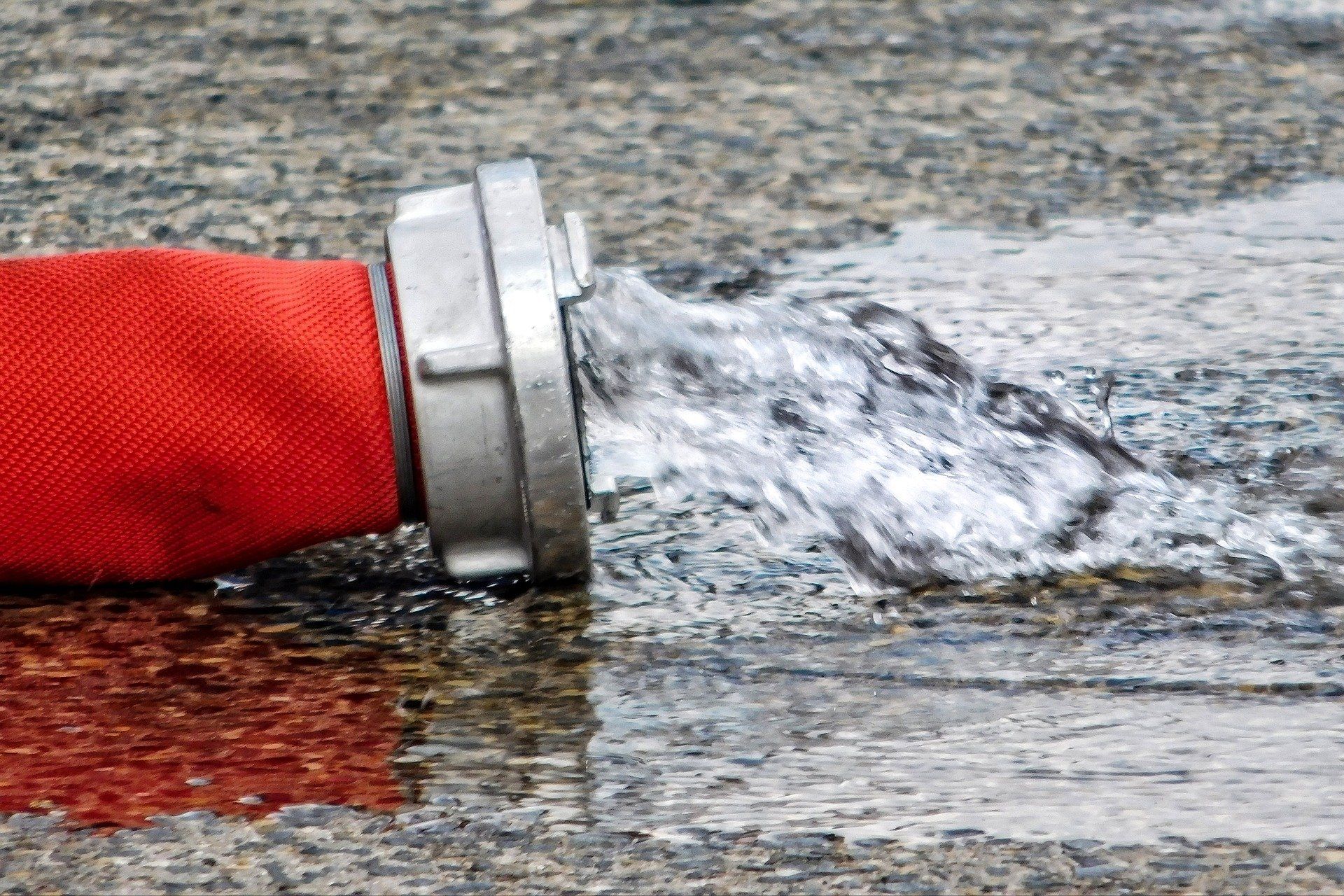

    The turbine-driven pressure amplifier will weigh less than 40-pounds and will be equipped with a 1.5 to 2.5 inch interchangeable inlet hose fitting.  The supply water from the fire engine will spin a turbine that directly drives a high-pressure pump.  Handline flow will power the pressure amplifier and will not require a separate power source (electric, diesel, gasoline, or PTO).

    Contact Us
    TurboDrive

A few of our recent deliveries & demonstrations

Let us provide you with more information virtually or in person!

Let's Talk

THE FUTURE OF UHP

Get in touch to find out how our turbine driven systems are revolutionizing the use of UHP in departments of all sizes and budgets.
